Paceship Northwind 29

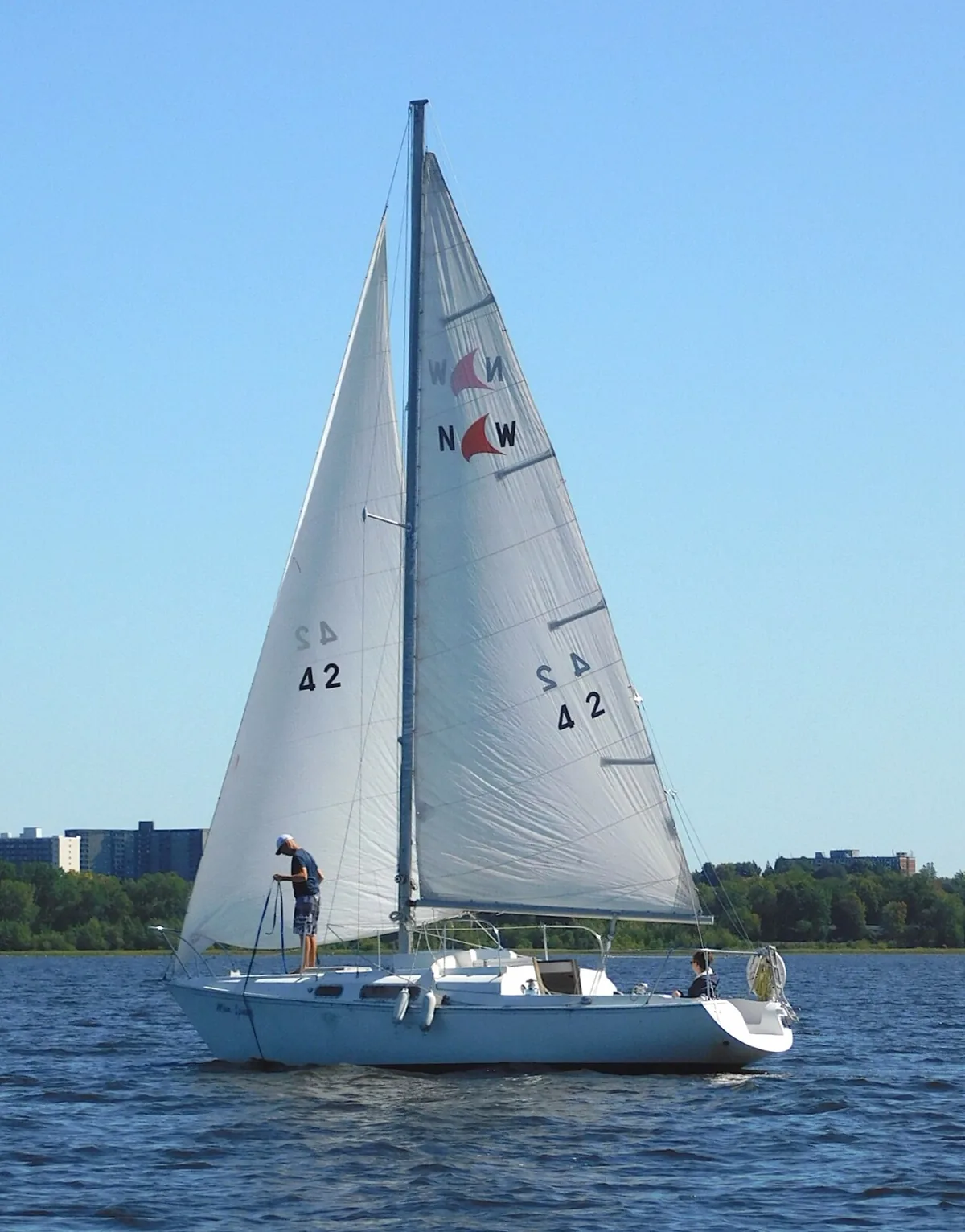

Photograph of an example of Paceship Northwind 29 — An example of Paceship Northwind 29.AhuntCC0 1.0 PhotographResized and converted to WebP; orientation corrected where encoded, without cropping. Composition and aspect ratio retained.

ConfigurationConfigurationView options

The model in numbers

Full specifications

Overall length · LOA Understand this detail Overall length · LOA: 8.78 m
Beam Understand this detail Beam: 2.79 m
Displacement Understand this detail Displacement: 2,993.71 kg
Ballast Understand this detail Ballast: 1,442.42 kg
Draught Understand this detail Draught: 2.06 m
Enclosed cabins Understand this detail Enclosed cabins: —
Engine power Understand this detail Engine power: —
Cockpit Understand this detail Cockpit: —

Dimensions

Overall length · LOA Understand this detail Overall length · LOA	8.78 m
Hull length	—
Waterline length · LWL Understand this detail Waterline length · LWL	6.71 m
Beam Understand this detail Beam	2.79 m
Draught Understand this detail Draught	2.06 m
Displacement Understand this detail Displacement	2,993.71 kg
Ballast Understand this detail Ballast	1,442.42 kg
Keel weight	—
Hull material	Fibreglass / GRP

Sailing characteristics

Rudder support Understand this detail Rudder support
Keel Understand this detail Keel	—

Comfort and behaviour at sea

Ballast / displacement Understand this detail Ballast / displacement	48.18 % Formula 100 × ballast_kg / displacement_kg
SA/D Understand this detail SA/D	—
D/L Understand this detail D/L	276.71 Formula (displacement_lb / 2240) / (0.01 × LWL_ft)³
Comfort Ratio Understand this detail Comfort Ratio	22.09 Formula displacement_lb / [0.65 × (0.7 × LWL_ft + 0.3 × LOA_ft) × beam_ft^1.333]
Capsize Screening Formula Understand this detail Capsize Screening Formula	1.95 Formula beam_ft / (displacement_lb / 64)^(1/3)
Theoretical hull speed Understand this detail Theoretical hull speed	6.29 kn Formula 1.34 × √LWL_ft
Power per tonne Understand this detail Power per tonne	—

Interior & layout

Cockpit Understand this detail Cockpit	—
Enclosed cabins Understand this detail Enclosed cabins	—
Heads Understand this detail Heads	—
Aft cabin Understand this detail Aft cabin	—
Internal walkthrough Understand this detail Internal walkthrough	—
Aft double berth Understand this detail Aft double berth	—
Galley shape	—
Galley level	—
Headroom Understand this detail Headroom	—
